Stainless Steel Column Stalks

Ian H has upgraded the column stalks on his AK to Stainless Steel from the orginal Rover SD1 items, here's how he did it:

This upgrade is based on the details and drawings produced by Craig Theobold (Craggle on the UK Cobra Club Forum)  for upgrading the Ford sierra Column Stlaks on a Dax, which can be found here.

For the AK conversion from rover SD1 column stalks you will need the following:

Part number 001, 2 required. I got these machined up bu a local machinist who only charged mr £10 each as a favour.

Part number 002, 2 required. I got the tube off e-bay (10mm OD X 8mm ID 316 Stainless Steel Tube X 500mm) from this seller.

Two off M3x8 stainless steel grub screws.

Two off push button switches, RS Part number 103-5726 - £2.50 from RS Components

Two springs cut down to suit, RS part number 751-590 - These are £14 for a pack of 10 from RS components but I found an appropriate spring from work.

For the Inicator and Horn Stalk:

Remove the cover:.....


..... and remove the stalk:

Next, cut the stalk down to leave a stub approximately 40mm long like this (The part circled in red):

Then chop open the original push switch, on the end inside you will see a small tube:

This will need to be ground down and pushed into the end of the 10mm tube - drill and tap a hole about 15mm from the end m3 thread this then pushes over the existing stalk:

The wires are then pushed down the tube till they come out of the end (see pictures below), you then have to solder the wires to where the existing wires connected on the back of the plastic housing.

The stalk is held in place by the 3mm grub screw which goes through the 10mm stalk and the insert and then tightens on the existing stalk:

For the push end of the stalk the switch is inserted in the end of the stainless tube first then a spring is cut to push the aluminium ends back away from the switches. The ends are held in place with an M3 grub screw and some thread lock.

Note that you may have to trim the plastic around the switch to get it to fit inside the 10mm stainless steel tube.



For the Washer stalk:

This is the same except the unit is sealed:

After cutting the existing stalk and preparing like above the wires are pushed down the hole and you will need to pull them out of the back of the switch:

Then push over the existing stalk and fasten like above with the stalk held in place by the 3mm grub screw which goes through the 10mm stalk and the insert and then tightens on the existing stalk

And here's the finsihed stalks:

If you have a query or need a bit of extra help  then use the "Contact Us" e-mail icon toward the top of the page on the right.

Another Build Begins - Ian C's Pilgrim Sumo

Ian C updates us having just been down to the Pilgrim Factory to collect his kit:

"It should come as no surprise that I am now the proud possessor of a Pilgrim Sumo kit but it still comes as a shock to me when I realise it – I have scarcely stopped smiling since I collected the kit on Wednesday just outside Brighton.

Overall the journey was enjoyable, the only surprise being the poor economy of the Luton van (but given the aerodynamics of a breeze block it should not have been).

I can’t wait to get started but need to sort out a few basics such as where / how to store the body now that I (under advice and duress) have decided not to store it outside on the garage roof."

The donor car:

Lifting the body and chassis the easy way:

Gently does it:

Loaded:

Loading the rest:

Safely home:

Starting to unload:

Chassis unloaded:

Not so easy getting the body out:

Body unloaded:

Garage starting to fill up:

With a little imagination...........

Santa's Grotto:

So thats the last we'll be seeing of Ian for a while.......... plenty to be getting on with!!

Photo Gallery Added

I've added a photo gallery - further down on the right hand side. The intention is to put all the photo's from the meets in here. So if you have any photos you would like included then just e-mail them to me and I'll stick them in the appropriate place.

Build Update - Dave's GD427

Dave brings us up to date with where he has got to with his GD427 build...

The beginning of the dream - This poster is on the side of a prestige car sales garage in Puerta Banus (near Marbella) They sell Lambos & Bentleys like we've never seen in this country (well in the North anyway)

The build started with stripping a G Registration Jaguar XJS. All the removed running gear components were cleaned with POR Marine Clean and then sandblasted. I could have done with a better compressor as the one I had only allowed me to do 30 seconds work followed by a 3 minute wait for it to recharge. This meant that the whole process took multiple sessions over a 2 week period. I was quite pleased with the end result but wish I had realised that I didn’t need the steering arms as this would have save me 2 hours unnecessary work. The completed parts were treated with POR Metal Ready prior to receiving 2 coats of POR 15.

It was at this stage that I purchased the chassis from GD, set up with Chevy engine mounts. Unfortunately we then moved house and as my Wife needed the new garage for her business the build was transferred to my mother’s single garage – everything had now become a bit of a tight squeeze!

All new bearings, bolts and Universal joints were aquired from Ward Engineering and I reconditioned the hubs myself with the help of a video on You-Tube.

By May 2009 the front and rear axles were completed and fitted to the chassis.

In October 2009 I purchased a Chevy cutout for a rebuild. I Figured it will keep me busy over winter until I can afford to purchase the body! I Hired a trailer from Ripon Trailers and drove down to west midlands to meet Adrian from AmericanV8Engines.co.uk. We checked casting number which showed 1969 - 1979. Bit of a leap of faith! Adrian sold it as a 2 bolt, but thought it may be a 4 (would be £50 more) - we wouldn't know full spec until I get into the engine.

The engine was safely brought home and fitted onto an engine stand, and the strip down began to strip. I did not rush and followed the instructions explicitly in my book (How to Rebuild the Small-Block Chevrolet by Larry Atherton & larry Schreib ISBN 978-1-884089-95-4 -fantastic!) In total it took 4 x 3 hour sessions to strip and check.

The block and heads were delivered to North East Engines (NEE) in Darlington where they are going to crack test them next week! If it is unusable, I will have to put it all back on a trailer, go back to West Midlands and swap for another. Then strip that one!!! Hasle but at least I do have a warranty.

On initial inspection, engine is un-touched and in good condition and the crank seems fine, a micro-polish should sort it out nicely.

The heads were almost blocked with coke, I guess this is why it was scrapped? The bottom end is in a really goo condition and I think I will be able to get away with just a hone. The guys at NEE agree but everything will be confirmed next week. The best bit is that then engine has turned out to be a 4 bolt mains from 1976 and had been originally fitted to a Camaro – Excellent!

I am thoroughly enjoying the engine re-build so far and would recommend it to anyone!

Building a Garage with an Inspection Pit - by Ian C

Ian-C outlines the construction and preparation of his garage in preparation for his Pilgrim Sumo Build.

With the approach of retirement Barbara was keen to move from the large family home in to a smaller house, hopefully a bungalow, to make maintenance easier. She had numerous criteria and factors to use in selecting possible properties, I had only one – a large garage or space to build one. My plan was to import an original Austin Healey 3000 from the States and renovate it. We found a bungalow that fitted all of our criteria in 2000 but the garage was delayed by unexpected redundancy and other domestic jobs that needed doing. The existing garage is shown below:

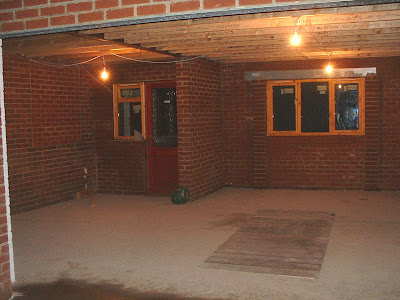

We (I) eventually started the garage project in November 2005, I had specified an inspection pit as one of the primary aims to the obvious discomfort of the builders who had no experience of such constructions. To cut a long story short the garage went up quickly and very satisfactorily but the pit stumbled from one crisis to another. Brunton Park, where we live is known for its clay subsoil and this was revealed when the hole for the pit flooded to a depth of about a metre within a few days of excavation. The builders were unhappy to proceed and the local planners suddenly became interested. I pressed the issue and with the help of my son Daniel (who is also mad on cars and was the only one to support my dream of having a pit) is an architect and had drawn up the plans and was helping with project managing the build. We did research and were sure that with the proper damp proof membrane and construction the pit would be watertight.

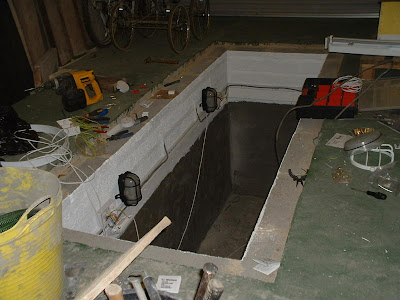

I drained the pit and installed a sump hole and pump to keep it dry prior to laying the floor and building the walls. Everything looked good and the pit was finished before the first sign of water ingress appeared and within a few days the water in the pit was 100 – 120mm deep. It would appear that the membrane had been punctured, probably on the ends of the reinforcing mesh in the floor. “Told you so” everyone seemed to be saying – or was that my paranoia. The water level stabilised at the 100mm level and I tried to ignore it while I pressed on with installing roller doors and the fit out. Being able to ignore it no longer I inevitably turned to the web for help – what did we do before the web?!! – and quickly found tanking products “claimed” to be able to withstand positive water pressure and able to set in the presence of, and even under, water. I used Weber Motex dryrend cementatious tanking mortar, after bailing out the pit, and was immensely relieved when the pit stayed dry. After leaving the pit for a month to confirm that the tanking had cured the problem I completed the painting and installation of power to complete (as I thought) the pit. The main garage was also slowly painted (the aim being to reduce the potential for dust to keep open the possibility of painting the car at some point in the future) and fitted out with benches, lighting and (most importantly) a good sound system. The first jobs to be carried out in the “new” garage were the stripping and cleaning of a Rover V8 3.9 EFi engine purchased for the car and various maintenance and repairs to my sons’ cars (Audi TT and Alfa 146). The repair to my younger son’s Alfa was the first to use the pit. The pit had been planned when I was hoping to restore an Austin Healey 3000 and the size and position were based on this premise. I had overlaid the plans for the garage with a scaled plan of a Healey to check track and size and making sure that access was available to both front and back mechanicals with the car over the pit.

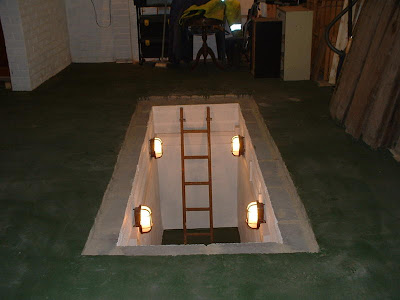

The first use with the Alfa revealed a basic and obvious (in hindsight) flaw – with the car central over the pit there was no way you could get down into the pit, OH S*%T. I don’t believe it (as Victor would say and I said endlessly), how had such a basic error been possible with all the thought and planning. The pit could be used if the car was not placed fully over the pit but this meant that either the front or the back, depending which way it had been driven over the pit, was sticking out past the roller door which in turn meant the door could not be closed. This was not a tenable position and I determined that modifications would be needed, the pit had also developed a very small leak – more of a weep than a leak, that I planned to fix at the same time.

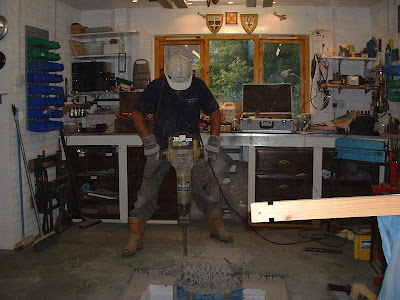

The plan I came up with was to cut steps into the end of the pit at the rear which would allow access under the front of the car when over the pit with the door closed. This plan was deemed to be unnecessary and a waste of time by Barbara and impossible by Daniel – never the less. After the first two days work which saw the removal of approximately one half of one of the dense concrete blocks used to build the pit I was starting to regret my impetuosity. I had erected a makeshift tent over the end of the pit in an attempt to keep the dust contained, it worked, after a fashion, but made the work incredibly hot and dusty. I progressed from lump hammer and cold chisels to the faithful De-Walt hammer drill but was still making very slow progress. Looking for alternatives I stumbled upon the electric Jack Hammer and hired one from the local tool hire company – what a turn round and such great fun, the ultimate boys’ toy. The remaining blocks and section of concrete floor were rapidly removed and the rest, as they say, was easy. I then turned my attention to the very small weep that was coming through what had the appearance of a pin hole near the end where I had cut the steps. I purchased some more tanking mortar and proceeded to cut round the pin hole with a diamond cutting wheel in the angle grinder with a view to chiselling off the old mortar and replacing it. I bet you are ahead of me because it is so obvious in hindsight – the pin hole in the tanking mortar was effectively holding back the water pressure the way that a tap with a leaking washer would hold back the cold water pressure in a domestic tap. As soon as I had completed the cuts it was as if I had turned on a tap, I just knelt there thinking (not for the first time) OH S*%T, what have I done. The flood showed no sign of abating despite desperate attempts to emulate the little Dutch boy and eventually I climbed out of the pit thoroughly humbled and defeated.

I went back the next day to survey the scene, the pit was approximately 50mm deep in water but on checking over a couple of days the water level was stable. I assumed that the initial water pressure was due to the fabric of the pit being totally saturated resulting in the flow of water through the enlarged hole and that now this stored water had dissipated the flow would be greatly reduced. Buoyed up by this revelation I determined to press on with the repair. Once again I bailed out the pit and applied mortar to the exposed area only to find it being washed off by the flow, even though it was much reduced back to nearly the former level. I managed to construct a beam and wedge to push some laminate against the mortar and hold it in place while it set. This worked a treat and a second layer was applied once it had set. DONE. I then completed the pit, for the second time by painting it and the boards used to cover it when not in use. I stood back to survey the results of my labour and slowly realised that the rest of the garage, previously looking like a place where you would be happy to construct a kit car, now looked like a building site – and a derelict one at that! The make shift tent had been ditched when I got the man sized jack hammer and never been replaced when I did the final cutting with the diamond wheel cutter. You must have seen the amount of concrete dust these things kick out when cutting paving stones and the like – well, that is what I was doing in the previously “finished” garage. Suffice it to say that the next month was spent taking everything out of the garage, vacuuming and cleaning it before return. I also had to vacuum and repaint the floor and some of the walls. I am happy to report that the construction of the work area is now complete and awaiting the kit. Somehow I think that my experience with the garage may be the ideal preparation for building a kit car although I hope not.
